Description
This item with two versions: one LAN and dual LAN .
One Lan Pc: Vga HDMI-compatible Lan 1*Usb3.0, 3*Usb2.0, But Without Any Com Ports
Dual Lan Pc: Vga HDMI-compatible 2*Lan 2*Com Ports 1*Usb3.0, 3*Usb2.0, Please See The Pictures.
Buyer Guiding:
|
Key Features |
CPU |
Intel Celeron N2810 ( 2 core 2 threads, 2.00 GHz , TDP: 7.5W ) Intel Celeron N2815 ( 2 core 2 threads, 1.86 GHz , TDP: 7.5W ) Intel Celeron N2930 ( 4 core 4 threads, 1.83 GHz , TDP: 7.5W ) Intel Celeron J1900 ( 4 core 4 threads, 2.00 GHz, TDP: 10W ) Intel Pentium J2900 ( 4 core 4 threads, 2.41 GHz, TDP: 10W ) Intel Celeron J1800 ( 2 core 2 threads, 2.58 GHz , TDP: 10W ) |
|
Display Function |
HDMI-compatible max resolution 1920 x 1200@60Hz , VGA max resolution 2650 x 1600@60Hz |
|
|
OS Support |
Support Windows 7,Windows 8, Windows 10, ubuntu / LINUX / CENTOS Aikuai |
|
|
CPU Platform |
intel Coffee Lake |
|
|
Chipsets |
Intel 100 series PCH |
|
|
Sockets Supported |
FCBGA1170 |
|
|
CPU Leve 2 Cache |
Depend on CPU |
|
|
Chipsets |
intel PCH-LP |
|
|
Memory Support |
DDR3L 1066/1333 / 1600MHz,1*204-pin SO-DIMM |
|
|
RAM Slot |
1 SO-DIMM Slots, support up to 8GB |
|
|
Storage |
1× mSATA SSD Socket,Support 1 * SATA2.5 “HDD (highest data conversion rate SATA 2.0) |
|
|
Ethernet |
10/100/1000 / Mbps Realtek 8111F, support Wake on LAN |
|
|
Power and Working Environment |
Input |
DC 12V 5A/60W(AC TO DC,100~240V) |
|
Operating Temperature |
-20/+65 Centigrade |
|
|
Storage Temperature |
15/35 Centigrade |
|
|
Relative Humidity |
5%~95% (non-condensing) |
|
|
Energy-saving |
Support Energy-saving technology, Speedstep |
|
|
64 bit computing |
Support 64 bit computing |
|
|
Virtualization |
Support Virtualization technology |
|
|
Consumption |
15W |
|
|
Physical Properties |
Fan |
Fanless |
|
Material |
Brushed Aluminum Alloy, a film covered on surface |
|
|
Package Content |
1x Mini PC 1x Power Adapter 2x WIFI antennas 1x VESA mount 1x User Manual |
|
|
Warranty |
3 years free repair |
Household office, HTPC Mini PC
Mini computer support almost online games, WPS, PS CAD office , family PC TV BOX. Video, muise, shopping, chatting, working.
Fanless, lower energy Mini Computer
Mini computer with aluminium heatsink, Fanless system support 7* 24hours working . Windows support windows 7 /8/10, linux, ubuntu.
Fanless, lower energy Mini Computer
Mini computer with aluminium heatsink, Fanless system support 7* 24hours working . Windows support windows 7 /8/10, linux, ubuntu.
Wireless WIFI
Free gift come with the pc package, 802.11b/g/n wireless 150/300Mbps WIFI module, with two antennas . (no ram no ssd no wifi)
What is in the package ?
1x Mini PC
1x Power Adapter
2x WIFI antennas
1x VESA mount
1x User Manual

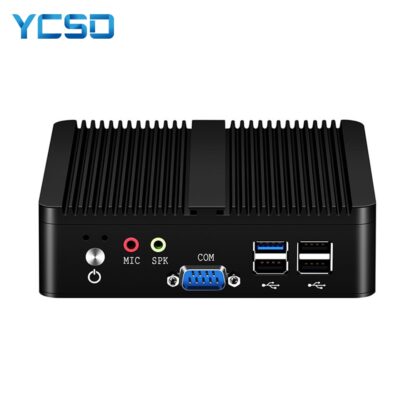

2-LAN PC Interface port:
2 x COM
1 x WiFi module
1 x HDMI-compatible, 1 x VGA
1 x USB 3.0 , 3 x USB 2.0
2 x RJ45 10/100/1000 Mbps Adaptive
Input DC 100-240V AC/50-24Hz
Output DC 12V/5A
Dimension: 136*126*39mm
1-LAN PC Interface port:
1 x WiFi module
1 x HDMI-compatible, 1 x VGA
1 x USB 3.0 , 3 x USB 2.0
1 x RJ45 10/100/1000 Mbps Adaptive
